OpenTelemetry 的基本使用

代码地址：https://github.com/xuqil/observability/blob/main/trace

启动 OpenTelemetry Collector 及其相关组件

# docker compose up -d
[+] Running 4/4
 ✔ Container prometheus                 Started                                                                                                                               0.9s
 ✔ Container trace-jaeger-all-in-one-1  Started                                                                                                                               0.9s
 ✔ Container trace-zipkin-all-in-one-1  Started                                                                                                                               0.9s
 ✔ Container trace-otel-collector-1     Started

对接 Zipkin

Zipkin 是一个分布式跟踪系统。它有助于收集解决服务体系结构中延迟问题所需的定时数据。功能包括收集和查找这些数据。

示例代码：

var logger = log.New(os.Stderr, "zipkin-example", log.Ldate|log.Ltime|log.Llongfile)

// initTracer creates a new trace provider instance and registers it as global trace provider.
func initTracer(url string) (func(context.Context) error, error) {
	// Create Zipkin Exporter and install it as a global tracer.
	exporter, err := zipkin.New(url, zipkin.WithLogger(logger))
	if err != nil {
		return nil, err
	}

	batcher := sdktrace.NewBatchSpanProcessor(exporter)

	tp := sdktrace.NewTracerProvider(
		sdktrace.WithSpanProcessor(batcher),
		sdktrace.WithResource(resource.NewWithAttributes(
			semconv.SchemaURL,
			semconv.ServiceName("zipkin-test"),
		)),
	)

	// 使用 zipkin 作为 Trace provider
	otel.SetTracerProvider(tp)

	return tp.Shutdown, nil
}

func main() {
	url := flag.String("zipkin", "http://localhost:9411/api/v2/spans", "zipkin url")
	flag.Parse()

	ctx, cancel := signal.NotifyContext(context.Background(), os.Interrupt)
	defer cancel()

	shutdown, err := initTracer(*url)
	if err != nil {
		log.Fatal(err)
	}
	defer func() {
		if err := shutdown(ctx); err != nil {
			log.Fatal("failed to shutdown TracerProvider: %w", err)
		}
	}()

	tr := otel.GetTracerProvider().Tracer("component-main")
	// 创建 root Span，名称为 foo
	ctx, span := tr.Start(ctx, "foo", trace.WithSpanKind(trace.SpanKindServer))
	<-time.After(6 * time.Millisecond)
	bar(ctx)
	<-time.After(6 * time.Millisecond)
	span.End()
}

func bar(ctx context.Context) {
	tr := otel.GetTracerProvider().Tracer("component-bar")
	// 创建子 Span，它的上级 Span 为 foo
	_, span := tr.Start(ctx, "bar")
	<-time.After(6 * time.Millisecond)
	span.End()
}

以上代码会创建两个Span，父Span为foo，子Span为bar，执行程序后，会向 Zipkin 上报 Trace 数据。

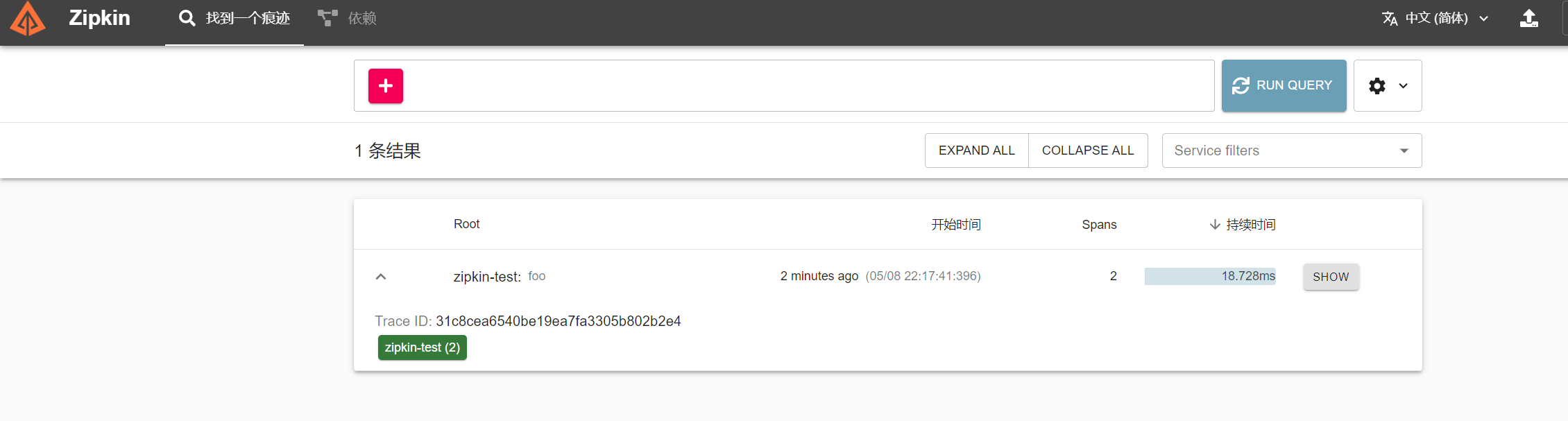

打开 Zipkin（http://127.0.0.1:9411/zipkin/），可以看到刚刚的 Trace：

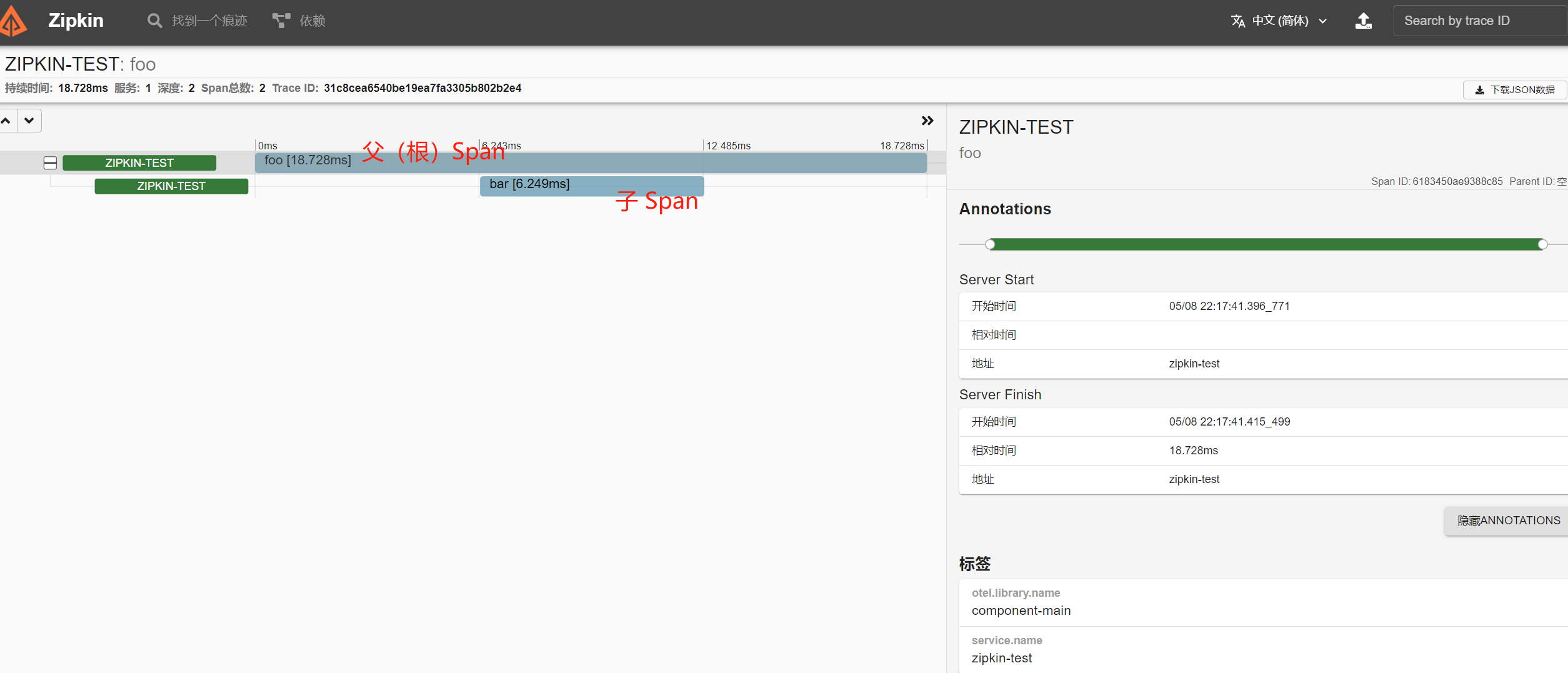

点开show可以查看Span详情，可以看到刚刚创建的两个Span：

对接 Jaeger

Jaeger 受到Dapper (opens new window)和OpenZipkin的启发，是由 (opens new window)Uber Technologies (opens new window)作为开源发布的分布式跟踪系统。它用于监控和故障排除基于微服务的分布式系统，包括：

• 分布式上下文传播
• 分布式事务监控
• 根本原因分析
• 服务依赖分析
• 性能/延迟优化

示例代码：

const (
	service     = "trace-demo"
	environment = "production"
	id          = 1
)

// tracerProvider returns an OpenTelemetry TracerProvider configured to use
// the Jaeger exporter that will send spans to the provided url. The returned
// TracerProvider will also use a Resource configured with all the information
// about the application.
func tracerProvider(url string) (*tracesdk.TracerProvider, error) {
	// Create the Jaeger exporter
	exp, err := jaeger.New(jaeger.WithCollectorEndpoint(jaeger.WithEndpoint(url)))
	if err != nil {
		return nil, err
	}
	tp := tracesdk.NewTracerProvider(
		// Always be sure to batch in production.
		tracesdk.WithBatcher(exp),
		// Record information about this application in a Resource.
		tracesdk.WithResource(resource.NewWithAttributes(
			semconv.SchemaURL,
			semconv.ServiceName(service),
			attribute.String("environment", environment),
			attribute.Int64("ID", id),
		)),
	)
	return tp, nil
}

func main() {
	tp, err := tracerProvider("http://localhost:14268/api/traces")
	if err != nil {
		log.Fatal(err)
	}

	// Register our TracerProvider as the global so any imported
	// instrumentation in the future will default to using it.
	otel.SetTracerProvider(tp)

	ctx, cancel := context.WithCancel(context.Background())
	defer cancel()

	// Cleanly shutdown and flush telemetry when the application exits.
	defer func(ctx context.Context) {
		// Do not make the application hang when it is shutdown.
		ctx, cancel = context.WithTimeout(ctx, time.Second*5)
		defer cancel()
		if err := tp.Shutdown(ctx); err != nil {
			log.Fatal(err)
		}
	}(ctx)

	tr := tp.Tracer("component-main")

	// 创建一个 Span
	ctx, span := tr.Start(ctx, "foo")
	defer span.End()

	bar(ctx)
}

func bar(ctx context.Context) {
	// Use the global TracerProvider.
	tr := otel.Tracer("component-bar")
	// 子 Span
	_, span := tr.Start(ctx, "bar")
	span.SetAttributes(attribute.Key("testset").String("value"))
	defer span.End()

	// Do bar...
}

根 Jaeger 一样，以上代码会创建两个Span，父Span为foo，子Span为bar，执行程序后，会向 Jaeger上报 Trace 数据。

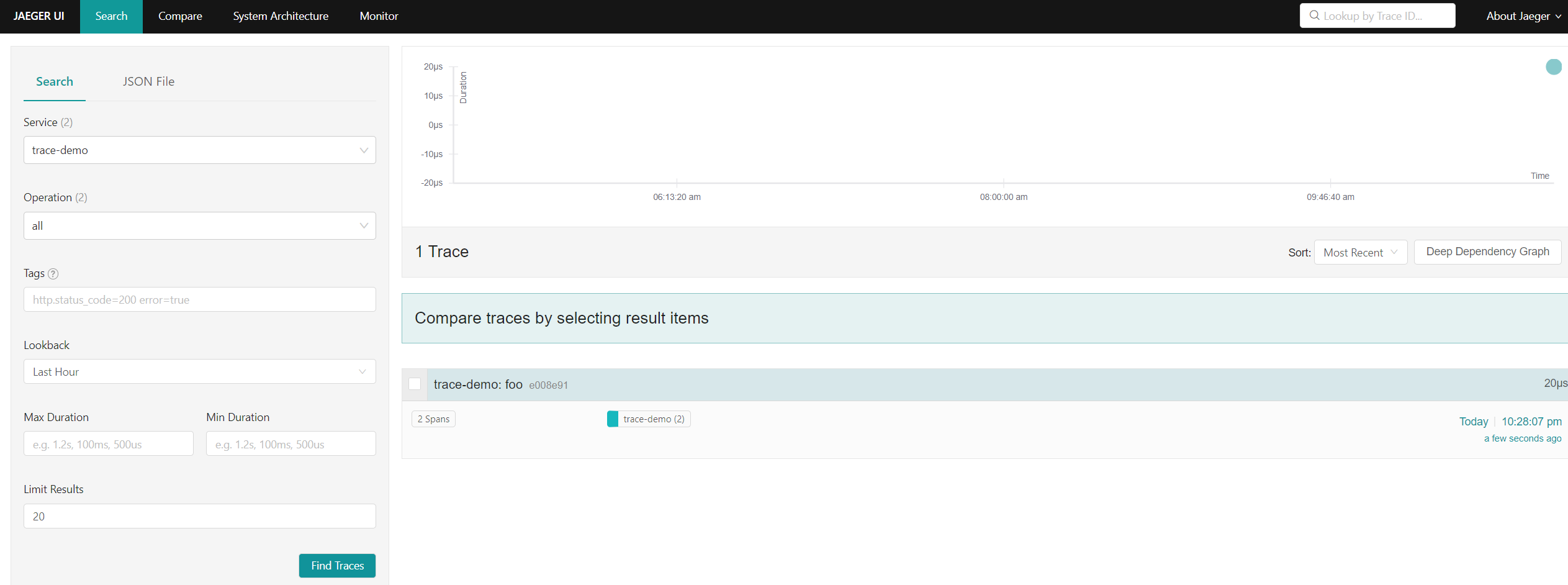

打开 Zipkin（http://127.0.0.1:16686/），可以看到刚刚的 Trace：

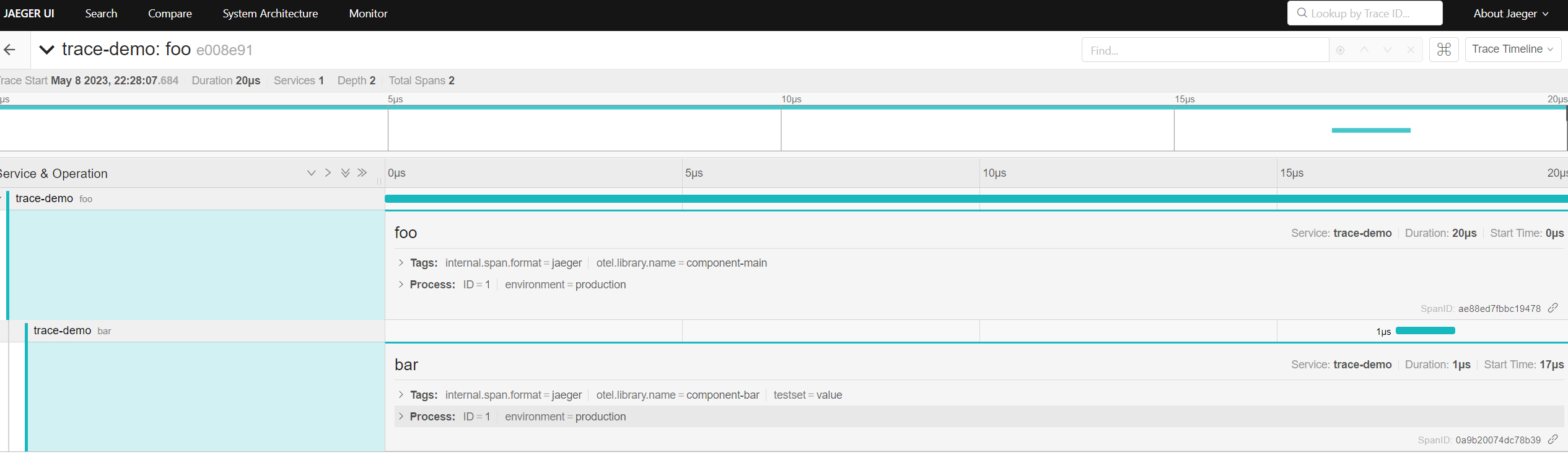

点开Span详情，可以看到刚刚创建的两个Span：

对接 Prometheus

Prometheus (opens new window)是一个开源系统监控和警报工具包，最初由 SoundCloud (opens new window)构建。自 2012 年启动以来，许多公司和组织都采用了 Prometheus，该项目拥有非常活跃的开发者和用户社区 (opens new window)。它现在是一个独立的开源项目，独立于任何公司进行维护。为了强调这一点，并明确项目的治理结构，Prometheus 于 2016 年作为继Kubernetes之后的第二个托管项目加入了 (opens new window)云原生计算基金会 (opens new window)。

Prometheus 将其指标收集并存储为时间序列数据，即指标信息与记录时的时间戳以及称为标签的可选键值对一起存储。

示例代码：

package main

import (
	"context"
	"fmt"
	"log"
	"math/rand"
	"net/http"
	"os"
	"os/signal"
	"time"

	"github.com/prometheus/client_golang/prometheus/promhttp"

	"go.opentelemetry.io/otel/attribute"
	"go.opentelemetry.io/otel/exporters/prometheus"
	api "go.opentelemetry.io/otel/metric"
	"go.opentelemetry.io/otel/sdk/metric"
)

func main() {
	rng := rand.New(rand.NewSource(time.Now().UnixNano()))
	ctx := context.Background()

	// The exporter embeds a default OpenTelemetry Reader and
	// implements prometheus.Collector, allowing it to be used as
	// both a Reader and Collector.
	exporter, err := prometheus.New()
	if err != nil {
		log.Fatal(err)
	}
	provider := metric.NewMeterProvider(metric.WithReader(exporter))
	meter := provider.Meter("github.com/xuqil/observability/metrics/prometheus")

	// Start the prometheus HTTP server and pass the exporter Collector to it
	go serveMetrics()

	opt := api.WithAttributes(
		attribute.Key("A").String("B"),
		attribute.Key("C").String("D"),
	)

	// This is the equivalent of prometheus.NewCounterVec
	counter, err := meter.Float64Counter("foo", api.WithDescription("a simple counter"))
	if err != nil {
		log.Fatal(err)
	}
	counter.Add(ctx, 5, opt)

	gauge, err := meter.Float64ObservableGauge("bar", api.WithDescription("a fun little gauge"))
	if err != nil {
		log.Fatal(err)
	}
	_, err = meter.RegisterCallback(func(_ context.Context, o api.Observer) error {
		n := -10. + rng.Float64()*(90.) // [-10, 100)
		o.ObserveFloat64(gauge, n, opt)
		return nil
	}, gauge)
	if err != nil {
		log.Fatal(err)
	}

	// This is the equivalent of prometheus.NewHistogramVec
	histogram, err := meter.Float64Histogram("baz", api.WithDescription("a very nice histogram"))
	if err != nil {
		log.Fatal(err)
	}
	histogram.Record(ctx, 23, opt)
	histogram.Record(ctx, 7, opt)
	histogram.Record(ctx, 101, opt)
	histogram.Record(ctx, 105, opt)

	ctx, _ = signal.NotifyContext(ctx, os.Interrupt)
	<-ctx.Done()
}

func serveMetrics() {
	log.Printf("serving metrics at localhost:2223/metrics")
	http.Handle("/metrics", promhttp.Handler())
	err := http.ListenAndServe(":2223", nil)
	if err != nil {
		fmt.Printf("error serving http: %v", err)
		return
	}
}

执行程序后，访问 exporter 地址：http://localhost:2223/metrics

# curl localhost:2223/metrics
# HELP bar a fun little gauge
# TYPE bar gauge
bar{A="B",C="D",otel_scope_name="github.com/xuqil/observability/metrics/prometheus",otel_scope_version=""} 6.947346382686447
# HELP baz a very nice histogram
# TYPE baz histogram
baz_bucket{A="B",C="D",otel_scope_name="github.com/xuqil/observability/metrics/prometheus",otel_scope_version="",le="0"} 0
baz_bucket{A="B",C="D",otel_scope_name="github.com/xuqil/observability/metrics/prometheus",otel_scope_version="",le="5"} 0
baz_bucket{A="B",C="D",otel_scope_name="github.com/xuqil/observability/metrics/prometheus",otel_scope_version="",le="10"} 1
baz_bucket{A="B",C="D",otel_scope_name="github.com/xuqil/observability/metrics/prometheus",otel_scope_version="",le="25"} 2
baz_bucket{A="B",C="D",otel_scope_name="github.com/xuqil/observability/metrics/prometheus",otel_scope_version="",le="50"} 2
baz_bucket{A="B",C="D",otel_scope_name="github.com/xuqil/observability/metrics/prometheus",otel_scope_version="",le="75"} 2
baz_bucket{A="B",C="D",otel_scope_name="github.com/xuqil/observability/metrics/prometheus",otel_scope_version="",le="100"} 2
baz_bucket{A="B",C="D",otel_scope_name="github.com/xuqil/observability/metrics/prometheus",otel_scope_version="",le="250"} 4
baz_bucket{A="B",C="D",otel_scope_name="github.com/xuqil/observability/metrics/prometheus",otel_scope_version="",le="500"} 4
baz_bucket{A="B",C="D",otel_scope_name="github.com/xuqil/observability/metrics/prometheus",otel_scope_version="",le="750"} 4
baz_bucket{A="B",C="D",otel_scope_name="github.com/xuqil/observability/metrics/prometheus",otel_scope_version="",le="1000"} 4
baz_bucket{A="B",C="D",otel_scope_name="github.com/xuqil/observability/metrics/prometheus",otel_scope_version="",le="2500"} 4
baz_bucket{A="B",C="D",otel_scope_name="github.com/xuqil/observability/metrics/prometheus",otel_scope_version="",le="5000"} 4
baz_bucket{A="B",C="D",otel_scope_name="github.com/xuqil/observability/metrics/prometheus",otel_scope_version="",le="7500"} 4
baz_bucket{A="B",C="D",otel_scope_name="github.com/xuqil/observability/metrics/prometheus",otel_scope_version="",le="10000"} 4
baz_bucket{A="B",C="D",otel_scope_name="github.com/xuqil/observability/metrics/prometheus",otel_scope_version="",le="+Inf"} 4
baz_sum{A="B",C="D",otel_scope_name="github.com/xuqil/observability/metrics/prometheus",otel_scope_version=""} 236
baz_count{A="B",C="D",otel_scope_name="github.com/xuqil/observability/metrics/prometheus",otel_scope_version=""} 4

从结果可以看到，OpenTelemetry 生成了跟 Prometheus exporter 一致的数据。
